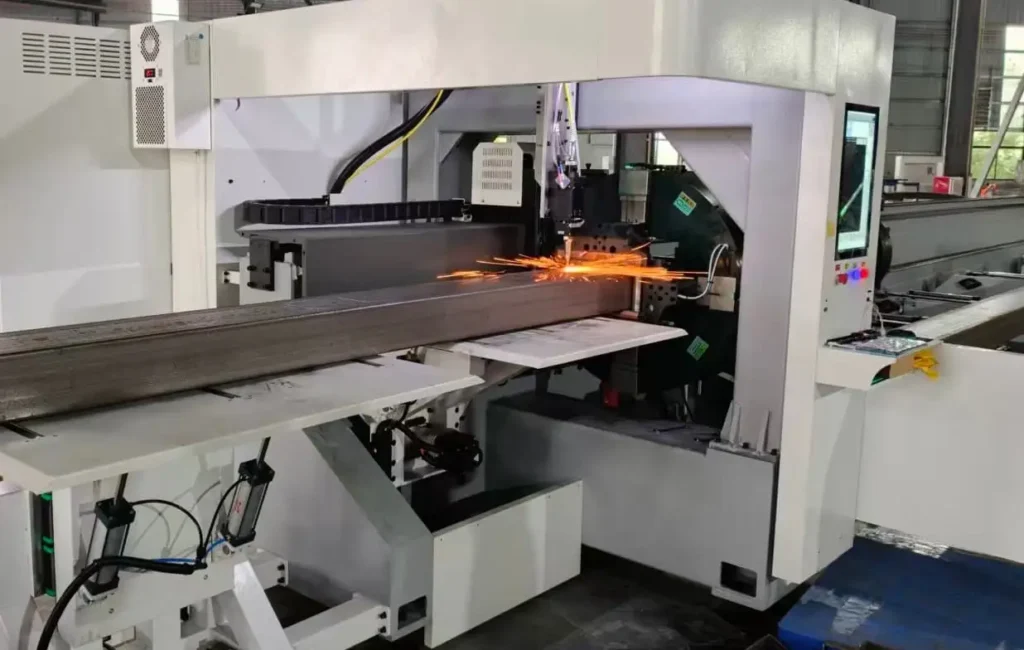

What Is Tube Laser Cutting Machine?
A tube laser cutting machine is a high-precision, fully automatic CNC metal processing machine specifically developed for cutting tubes, pipes, and structural profiles. It is designed to solve the challenges of customized tube fabrication in the metal manufacturing industry. Unlike conventional flat sheet laser cutting machines that can only process metal plates, a professional tube laser cutter is equipped with a dedicated tube rotary chuck, precision servo feeding system, professional tube-cutting CNC control system, and a highly stable fiber laser source, overcoming the limitations of traditional processing equipment.
In addition to standard tube cutting, the machine can perform tube drilling, slotting, bevel cutting, intersecting line cutting, arc cutting, irregular contour cutting, surface engraving, and other complex precision machining processes in a single setup. It is suitable for round tubes, square tubes, rectangular tubes, oval tubes, and various special-shaped structural profiles.
As a result, tube laser cutting machines have become essential equipment for achieving efficient, precise, and intelligent production in tube processing, hardware manufacturing, engineering projects, and machinery production industries.
Working Principle of a Tube Laser Cutting Machine
A tube laser cutting machine operates based on the thermal cutting principle of a high-energy laser beam. A high-quality fiber laser generator produces a stable, high-density laser beam, which is focused through a professional optical lens system to create an extremely small high-temperature spot on the metal surface. The temperature can instantly reach several thousand degrees Celsius, rapidly melting, vaporizing, and removing the material from the cutting area.
During the cutting process, high-precision servo motors, the rotary positioning system, and the laser cutting head work synchronously under the control of the CNC system. According to the material type, wall thickness, and cutting geometry, the machine automatically adjusts cutting speed, laser power, and focal position parameters.
By integrating tube rotation, horizontal feeding, and laser cutting into a synchronized process, the machine can complete complex tube fabrication tasks in a single operation. The entire process is intelligently automated without manual positioning, marking, or auxiliary cutting, eliminating human errors and ensuring consistent accuracy and stable quality across production batches.
Main Components of a Tube Laser Cutting Machine
A tube laser cutting machine typically consists of the following core components:
Laser Generator
The laser generator produces the high-energy laser beam and serves as the core component of the machine. Common types include fiber lasers and CO₂ lasers, with fiber lasers being the most widely used.
Laser Cutting Head
The cutting head includes focusing lenses, nozzles, and sensing devices that focus the laser beam and enable precise cutting.
CNC Control System
The CNC system controls cutting paths, cutting speed, laser power, and other parameters to achieve highly automated and precise machining.
Machine Bed and Chuck System
The machine bed and chucks securely hold and rotate the tube, allowing processing according to the programmed cutting trajectory.
Auxiliary Gas System
The auxiliary gas system supplies oxygen, nitrogen, or compressed air during cutting to remove molten material and protect the cutting edge.
Suitable Materials and Tube Types
Industrial tube laser cutting machines offer exceptional material compatibility and can process nearly all mainstream metal materials and common structural profiles used in modern manufacturing. Whether processing thin-wall precision tubes or thick-wall industrial profiles, the machine delivers stable, high-precision cutting with burr-free and deformation-free results.
Processable Materials
Suitable materials include:
- Carbon steel
- High-strength alloy steel
- Stainless steel
- Aluminum alloy
- Copper
- Brass
- Galvanized steel tubes
- Pickled steel tubes
- Titanium alloy
The machine can stably process thin-wall tubes from 0.5 mm and thick-wall industrial tubes exceeding 20 mm, delivering clean cuts without burning, collapse, or material damage.
Supported Tube and Profile Types
Supported profile types include:
- Round tubes
- Square tubes
- Rectangular tubes
- Oval tubes
- Flat oval tubes
- Angle steel
- Channel steel
- I-beams
- H-beams
- U-shaped steel profiles
The machine also supports customized non-standard profile shapes and can quickly switch between different tube diameters and profile specifications, providing excellent production flexibility.
Key Advantages Compared with Traditional Processing Methods
Traditional metal tube fabrication commonly relies on manual marking, sawing, drilling, milling, and other semi-manual processes. These methods involve multiple production bottlenecks and inefficiencies, including manual positioning, feeding, deburring, polishing, and other secondary operations. They often result in long production cycles, inconsistent product quality, dimensional inaccuracies, and high labor costs.
As a modern intelligent manufacturing solution, a tube laser cutting machine eliminates these limitations and offers significant performance advantages over traditional equipment.
Ultra-High Precision and Defect-Free Results
The machine utilizes precision laser processing technology with an overall machining accuracy of ±0.02 mm and repeat positioning accuracy of up to ±0.01 mm.
The narrow and uniform laser kerf produces smooth cutting surfaces without burrs, slag, deformation, or scratches. No secondary deburring or polishing is required, greatly improving product qualification rates and meeting the precision requirements of mechanical assembly applications.
Versatile Processing Capabilities
The machine supports:
- 0°–90° bevel cutting
- Precise intersecting line cutting
- Irregular hole processing
- Arc hollow cutting
- Surface pattern engraving
These capabilities allow the production of customized and complex workpieces that traditional sawing and drilling equipment cannot achieve.
Fully Automatic Operation for Cost Reduction and Efficiency Improvement
Equipped with integrated automatic loading, feeding, cutting, and unloading systems, the machine enables fully automated production.
Operators only need to import drawings and set processing parameters. Compared with traditional processing methods, labor requirements can be reduced by up to 80%, while production cycles can be shortened by more than 60%, significantly increasing productivity.
High Material Utilization and Low Operating Costs
The intelligent CNC system includes automatic nesting functions that optimize cutting paths according to tube length and part geometry, maximizing material utilization and reducing waste.
Unlike traditional mechanical cutting, laser processing causes no mechanical extrusion damage, resulting in minimal workpiece loss. The machine also features low failure rates and reduced maintenance costs, providing superior long-term operating value.
Main Application Industries
Thanks to its high precision, flexible processing capabilities, stable performance, and efficient production capacity, tube laser cutting machines have become standard equipment in the global metal manufacturing industry.
Fitness Equipment and Furniture Hardware Industry
Used for precision cutting and forming of stainless steel and aluminum alloy tubes in:
- Fitness equipment
- Yoga equipment
- Outdoor furniture
- Stainless steel tables and chairs
- Metal frame furniture
The machine ensures accurate welding joints and attractive product appearance while meeting strict quality standards.
Automotive and Transportation Industry
Applications include:
- Automotive frame tubes
- Exhaust pipes
- Shock absorber tubes
- Bicycle frames
- Electric vehicle frames
- Transportation equipment structural components
High-precision cutting improves assembly accuracy, safety, and overall product reliability.
Construction Machinery and Aerospace Industry
Suitable for processing:
- High-strength structural steel tubes
- Mechanical support profiles
- Engineering equipment components
- Aerospace precision tubing
- Hydraulic piping components
The machine meets the strict accuracy and strength requirements of industrial and aerospace applications.
Construction Decoration and Municipal Engineering Industry
Widely used for:
- Municipal guardrails
- Road safety barriers
- Curtain wall structures
- Stainless steel decorative tubes
- Landscape architectural components
The machine supports both standardized mass production and customized design projects.
General Machinery and Agricultural Equipment Industry
Applied in the manufacturing of:
- Textile machinery
- Food processing equipment
- Packaging machinery
- Agricultural machinery
- Environmental protection equipment
It provides high-precision structural components that improve assembly quality and equipment reliability.
Frequently Asked Questions
Q1: Can a Tube Laser Cutting Machine Only Cut Round Tubes?
Answer: No. Our industrial tube laser cutting machines are multifunctional processing systems specifically developed for both standard and special-shaped metal profiles. They can efficiently process round tubes, square tubes, rectangular tubes, oval tubes, flat tubes, angle steel, channel steel, I-beams, and various customized profile shapes.
One machine can cover nearly all tube and profile processing applications, eliminating the need for multiple machines and reducing equipment investment and factory space requirements.
Q2: Is Secondary Processing Required After Laser Tube Cutting?
Answer: Under normal processing conditions, no secondary processing is required.
The machine uses non-contact laser thermal cutting technology, which does not cause mechanical deformation. The finished cutting surface is smooth, burr-free, and free of oxidation layers, allowing parts to be used directly for welding, assembly, and installation without additional deburring, grinding, or edge finishing operations.
Q3: Is the Machine Suitable for Small-Batch Customized Production?
Answer: Yes. The machine is suitable for both small-batch customized manufacturing and large-scale mass production.
The intelligent CNC control system supports graphical programming and rapid parameter switching. For customized orders, processing programs can be generated quickly to support flexible production. For high-volume production, the machine provides fully automatic continuous feeding and cutting, ensuring excellent consistency across all workpieces.
Its outstanding production flexibility makes it suitable for the manufacturing requirements of most metal fabrication facilities.
